Midnight  Scalar Network Analyzer



Features & Specs

Documentation

Schematic

Software

Assembly Guide

Photo Gallery

Place Order

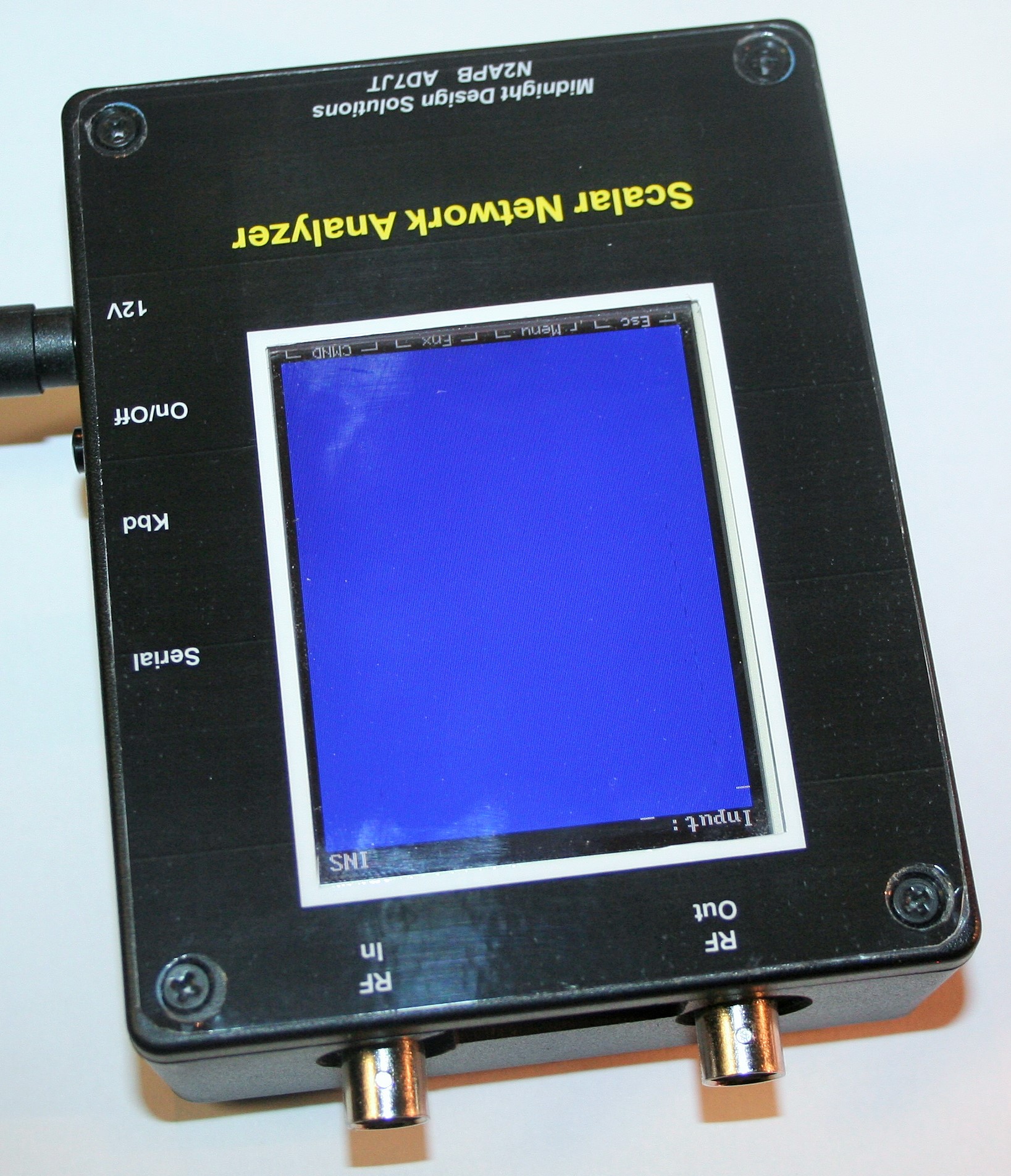

Standard Black Overlay shown




Milled Enclosure

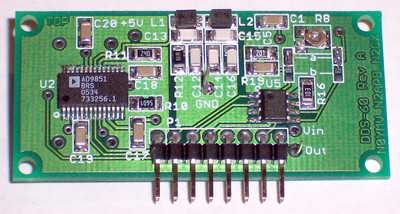

DDS-60 Siggen Card







Ordering


Typical Order is ... PCB Kit + QVGA Display + Milled Enclosure + Overlay + DDS-60 Siggen Card

PCB Kit (includes QVGA Display, but no DDS-60 or enclosure) ................................................................................... $75
Includes pcb and all board-mounted components except the enclosure and DDS-60 card.  (See options below.)  Microcontroller U1 is pre-programmed with the latest SNA firmware.  A pre-formatted SD card is included.

Option 1: Enclosure ............................................................................................................................. $8
This is the recommended black plastic enclosure from Hammond (p/n 1591XX). The enclosure is "original" (not milled) ... you must cut the holes to accommodate the SNA pcb.



Option 2: Milled Enclosure (ready to use) ........................................................................................... $16
This is the recommended black plastic enclosure from Hammond (p/n 1591XX). The enclosure is milled (pre-cut) to accommodate the SNA pcb.

Option 3:  Front Panel Overlay (Black) ................................................................................................. $5
A black-background, laminated label for the front cover of the enclosure.  Just use double-stick tape or spray adhesive on backside and press onto your enclosure's cover plate.

Option 4: SNA Upgrade Kit ................................................................................................................... $15
PCB-mounted parts to turn NAT into SNA.  (There is no need to order this item if you are purchasing the main SNA PCB Kit.  You would use this SNA Upgrade Kit, and the DDS-60 card, if wish to turn your earlier "NAT" kit into an SNA.)



Option 6: DDS-60 Siggen Card (KIT) ...................................................................................................... $45
Signal generator card used within the SNA Kit ... See

Option 7: DDS-60 Siggen Card (ASSEMBLED & TESTED) ...................................................................... $70
Signal generator card used within the SNA Kit.

Option 8: Priority Express Mailing for Overseas Shipments ................................................................... $30
We normally ship by Air Mail, which can sometimes take 10-20 business for delivery to destinations outside the U.S., and only has limited parcel tracking.  But if instead you would like to receive your order within 3-5 business days, and have door-to-door package tracking, just add this option to your order!  [This option not needed for Canadian destinations.]
