Midnight  GPS Display Terminal





Assembly Guide

Place Order
(Out of Stock)


Inexpensive handheld unit with color graphic display and touch panel displaying GPS receiver data & more!


Live display of GPS Receiver Data* ... Time, Date, Lat/Log, Satellite Signal Strength, ...


Super Accurate Clock ... Displays UTC and Local time


Signal Generator ... Programmable "timepulse" output (1pps, x-MHz)**


NMEA Data Stream ... Displays NMEA sentences for all satellites being received


Setup Mode ... Specify serial baud, timezone, LCD orientation, ...


SD Card ... For software updating, GPS data collection, ...


DOS File System ... On SD Card, file/data management


320x240 pixel color graphic LCD ... On SD Card, file/data management


Touch-Screen ... For convenient field use or as display on bench


Keyboard input (optional) ... For convenient data entry/edit



Requires external connection of GPS receiver (not included); 3.3V serial data (Rxd/TxD)

**  Not all GPS receivers have ability to generate output frequencies.  Supported receivers currently include u-Blox Rx family, and not the u-Blox clones from offshore sources..

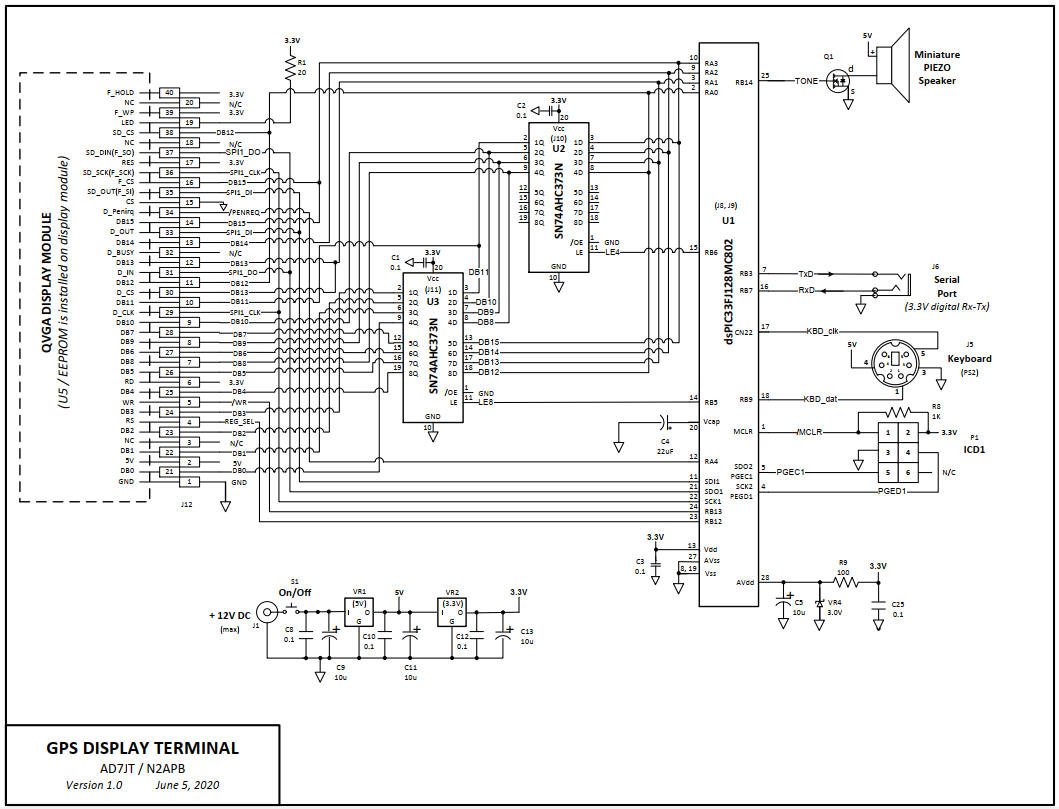

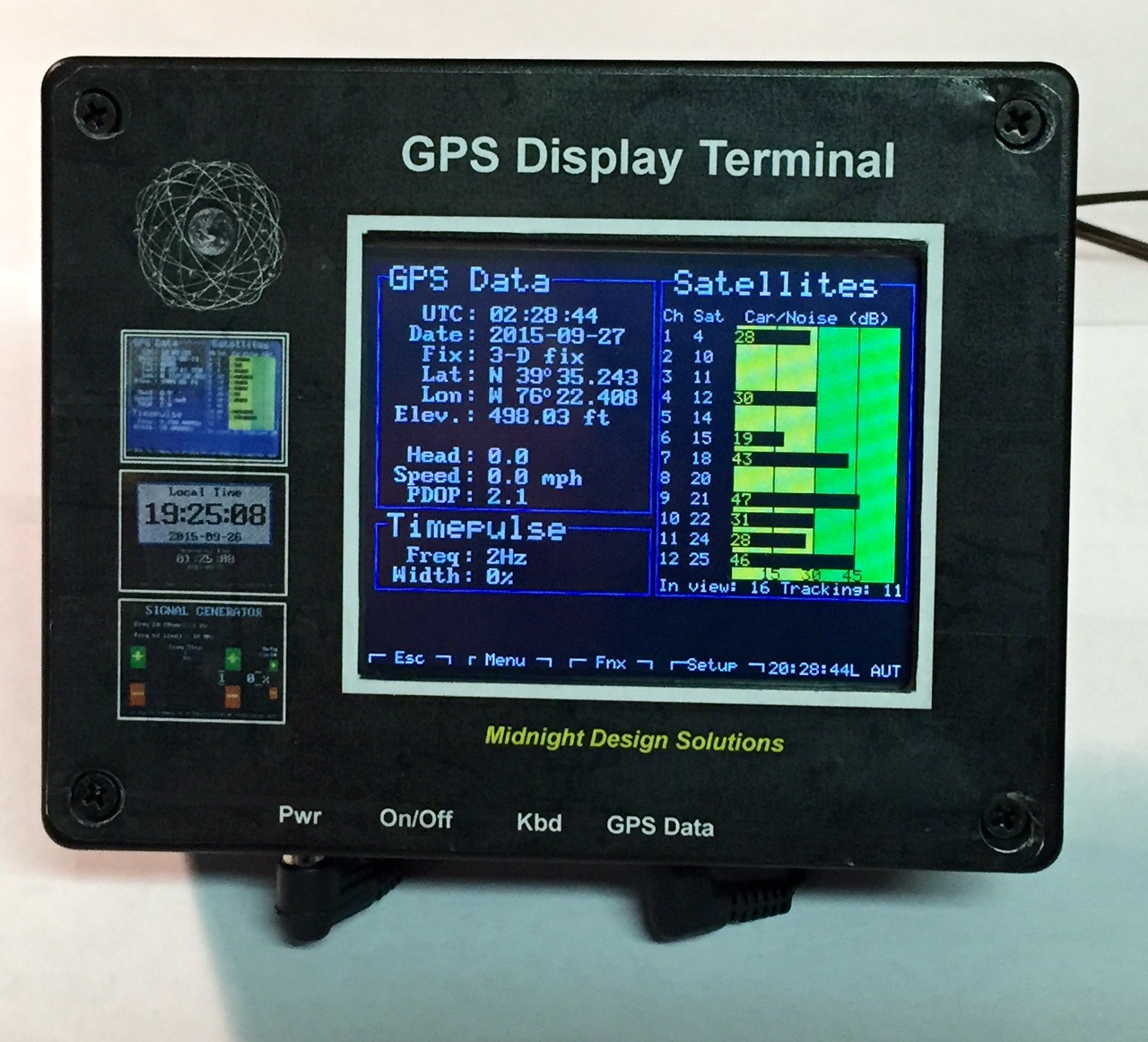

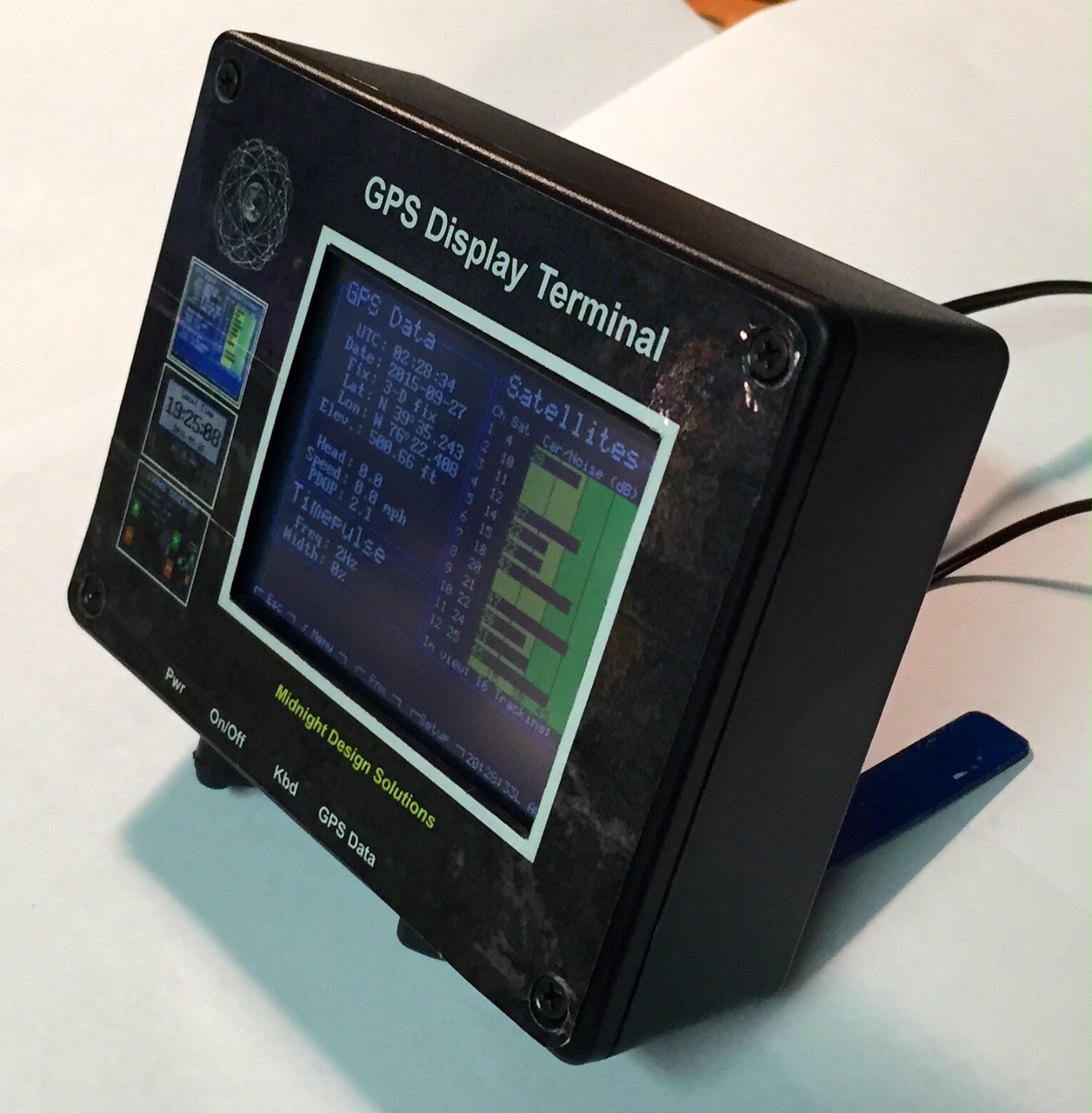

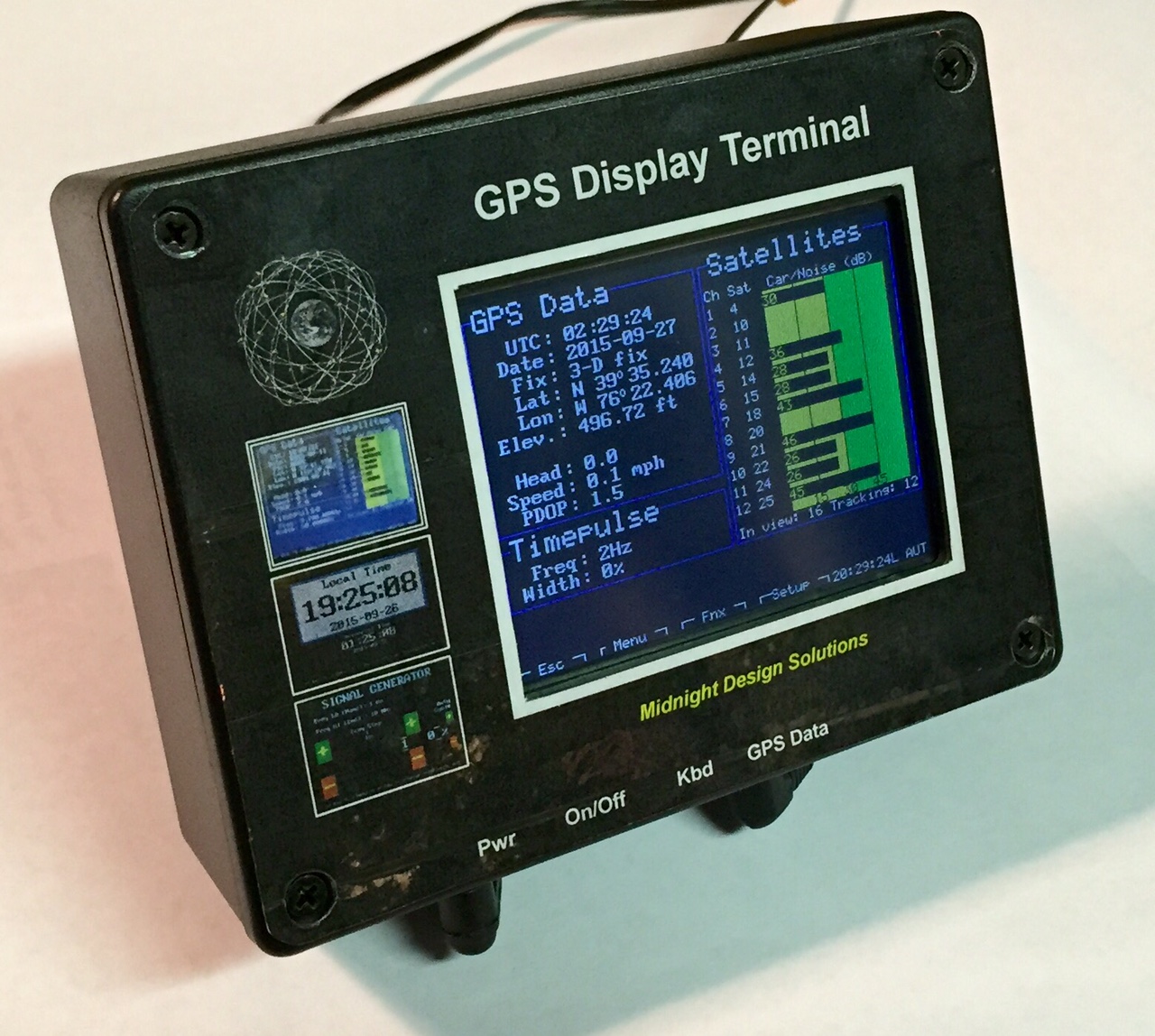

The Midnight GPS Display Terminal (GDT) monitors the output of a GPS receiver and displays satellite signal strength as well as location and time information.  When a Ublox GPS receiver is being used, the GDT can control the frequency and duty cycle of a timing signal generated by the GPS receiver and synchronized with the precision atomic clocks in the GPS satellites.  The result is an inexpensive, very precise signal generator tunable from 1 Hz to 10 MHz in increments of 1 Hz.



The GDT dynamically interprets and displays the live NMEA serial data feed from any GPS receiver module with a serial interface.  Additional screens show raw NMEA messages and non-NMEA proprietary messages.  Messages can be recorded in files on an SD card using the GDT's FAT16 file system which is compatible with virtually all Windows and Linux systems.  Recorded messages can be played back on the GDT or transferred to a PC for further analysis.

Another screen controls the TimePulse output of a u-Blox GPS receiver.  This feature provides an extremely accurate time base in a signal generator format.  The frequency range covered ranges from below audio up into the HF range. [NOTE:  These features only available when coupled with a u-Blox GPS receiver module

And yet another screen turns the GDT into an atomic clock displaying local time and UTC time.  The clock time is synchronized with the clocks onboard the GPS satellites.

The GDT software also runs on the Midnight Scalar Network Analyzer (SNA) hardware that can easily and quickly be installed in a MSNA thus converting it to a GDT.  The GDT can be converted back to an MSNA just as easily.




Kit .... OUT OF STOCK   Note:  GPS Receiver not included.  Contact Midnight Design if this option is desired.


Shipping fee added upon checkout (US & Canada: $10  /  International: $30)
